Pipe Fitting

Prototype using genetic algorithms to redesign closing pipes so they fit as-built ship modules at Navantia.

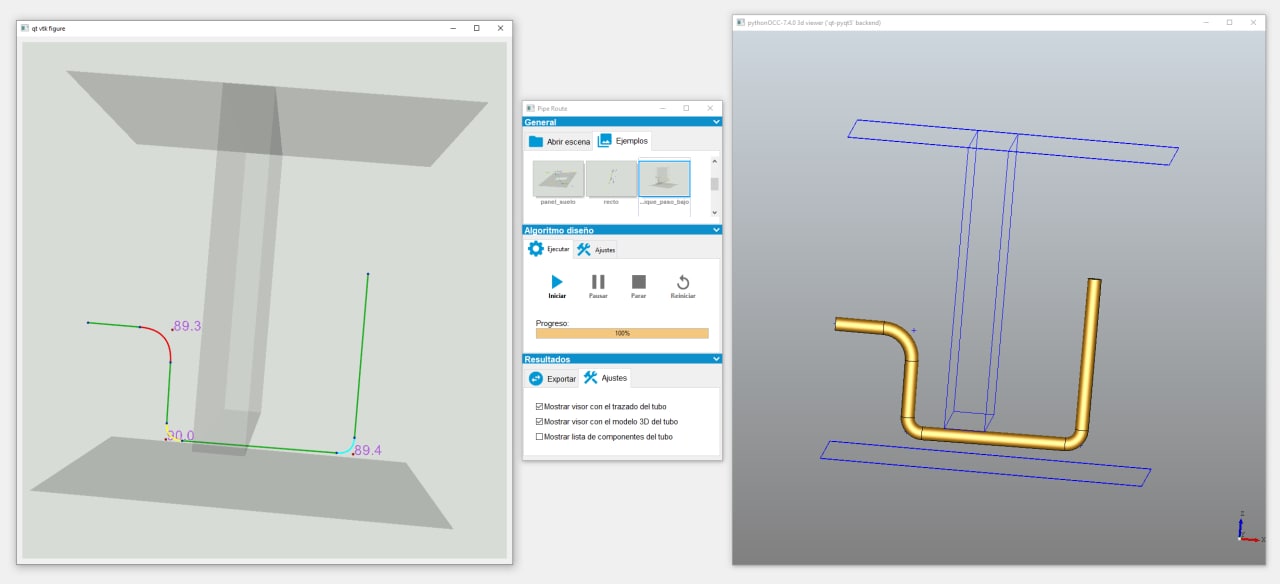

Three prototype windows: the pipe route with its bend angles, the Pipe Route panel running the design algorithm, and the 3D model of the pipe between two ship blocks
The prototype: route, control panel and 3D pipe model
Role
Researcher
Period
Nov 2020 – Nov 2021 · UDC – Navantia Joint Research Unit
  • Analysis and benchmarking of commercial 3D scanners with the Polyworks metrology suite.
  • Conceptual design of a 3D measurement tool in Fusion 360, and a geometric analysis of the problem.
  • Genetic algorithm development and benchmarking in NumPy.
  • Python prototype with a wxPython frontend, refined with the end users and their metrology team.

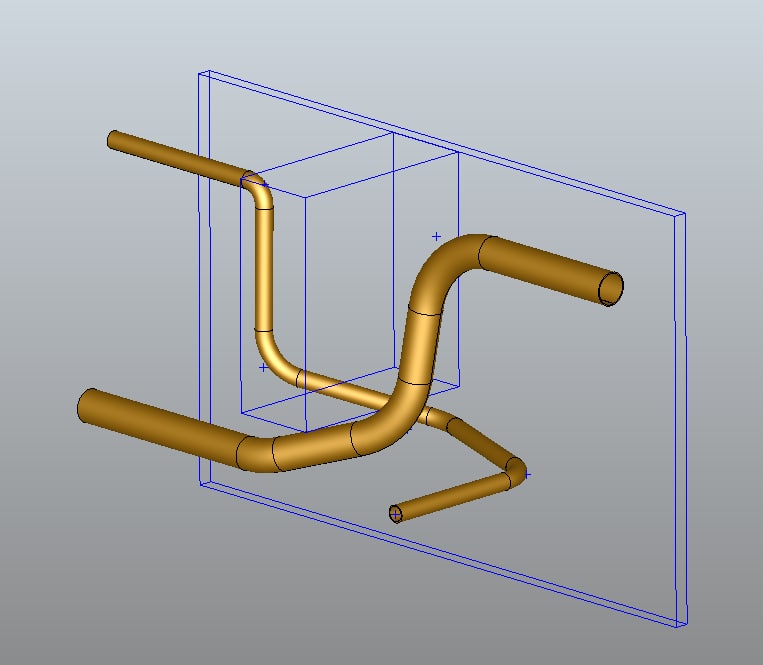

3D model of two closing pipes routed around a box-shaped obstacle in front of a panel
Closing pipes routed around an obstacle

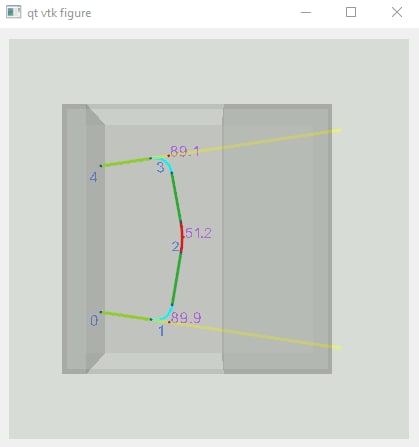

View of a route with numbered straight runs and bends annotated with their angles in degrees
Computed route: straight runs and bends with their angles

Technologies

  • Python
  • Genetic algorithms
  • wxPython
  • NumPy
  • PyGAD
